Single-cell transcriptomics
In this tutorial, we will use the example Lung datasets (Madissoon et al and He et al) introduced in the data processing step earlier. In particular, we will explore how to use Hydra to:
- Select cell-identity genes in a reference scRNA-seq dataset
- Visualize the expression of the selected identity genes
- Perform automated cell type annotation of a query dataset
Capturing cell-identity genes
A key component of Hydra is selecting features that are specific to the cell type of interest. As an interpretable deep learning-based tool, Hydra employs a post-hoc feature attribution approach called Integrated Gradients on the trained VAE models.
After the data processing step, the processed Reference and Query datasets are stored in the directory Input_Processed. By default, this directory will be saved in the working directory from where Hydra was called.
Below is an example of how to run feature selection:
hydra --setting fs --base_dir [Path to the directory containing `Input_Processed` directory]
Note
Depending on your GPU memory, you might want to adjust the batch size for feature attribution using the argument attr_batch_size. We recommend providing smaller batch sizes with lower GPU memory to avoid CUDA out of memory error (Default: 500, tested on GPU - 24GB memory).
Running feature selection on our reference dataset - Lung (Madissoon et al). Since we are running fs from the same directory containing the Input_Processed directory, we can skip the base_dir argument.
hydra --setting fs
Thank you for using Hydra 😄, an interpretable deep generative tool for single-cell omics. Please refer to the full documentation available at https://sydneybiox.github.io/Hydra/ for detailed usage instructions. If you encounter any issues running the tool - Please open an issue on Github, and we will get back to you as soon as possible!! =============================== Device to be used: CUDA =============================== INFO - 2025-08-10 07:26:12,597 - Starting to run INFO - 2025-08-10 07:26:12,597 - Training model... INFO - 2025-08-10 07:26:27,691 - The Dataset is: scRNA-seq 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 40/40 [00:25<00:00, 1.56it/s] INFO - 2025-08-10 07:27:15,789 - Refining Model: 1 55%|██████████████████████████████████████████████████████████████████████████████████████▊ | 26/47 [00:00<00:00, 44.70it/s]Early stopping at epoch: 29 60%|█████████████████████████████████████████████████████████████████████████████████████████████▌ | 28/47 [00:00<00:00, 34.50it/s] INFO - 2025-08-10 07:27:19,113 - Refining Model: 2 68%|███████████████████████████████████████████████████████████████████████████████████████████████████████████▍ | 26/38 [00:00<00:00, 31.17it/s]Early stopping at epoch: 35 89%|████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████▍ | 34/38 [00:01<00:00, 30.72it/s] INFO - 2025-08-10 07:27:20,479 - Refining Model: 3 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 48/48 [00:01<00:00, 37.35it/s] INFO - 2025-08-10 07:27:22,026 - Refining Model: 4 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 31/31 [00:01<00:00, 29.37it/s] INFO - 2025-08-10 07:27:23,329 - Refining Model: 5 57%|████████████████████████████████████████████████████████████████████████████████████████▉ | 17/30 [00:00<00:00, 23.28it/s]Early stopping at epoch: 25 80%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████▌ | 24/30 [00:01<00:00, 23.61it/s] INFO - 2025-08-10 07:27:24,591 - Refining Model: 6 62%|████████████████████████████████████████████████████████████████████████████████████████████████▊ | 29/47 [00:00<00:00, 43.00it/s]Early stopping at epoch: 30 62%|████████████████████████████████████████████████████████████████████████████████████████████████▊ | 29/47 [00:00<00:00, 30.83it/s] INFO - 2025-08-10 07:27:25,782 - Refining Model: 7 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 40/40 [00:01<00:00, 33.50it/s] INFO - 2025-08-10 07:27:27,247 - Refining Model: 8 71%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████▏ | 34/48 [00:01<00:00, 42.93it/s]Early stopping at epoch: 36 73%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████▍ | 35/48 [00:01<00:00, 31.24it/s] INFO - 2025-08-10 07:27:28,633 - Refining Model: 9 66%|███████████████████████████████████████████████████████████████████████████████████████████████████████▎ | 25/38 [00:01<00:00, 37.84it/s]Early stopping at epoch: 27 68%|███████████████████████████████████████████████████████████████████████████████████████████████████████████▍ | 26/38 [00:01<00:00, 25.03it/s] INFO - 2025-08-10 07:27:29,911 - Refining Model: 10 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 31/31 [00:01<00:00, 27.28it/s] INFO - 2025-08-10 07:27:31,291 - Refining Model: 11 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 50/50 [00:01<00:00, 39.54it/s] INFO - 2025-08-10 07:27:32,821 - Refining Model: 12 76%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████▌ | 32/42 [00:00<00:00, 48.71it/s]Early stopping at epoch: 35 81%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████ | 34/42 [00:00<00:00, 38.05it/s] INFO - 2025-08-10 07:27:33,986 - Refining Model: 13 46%|████████████████████████████████████████████████████████████████████████▊ | 19/41 [00:00<00:00, 26.95it/s]Early stopping at epoch: 28 66%|███████████████████████████████████████████████████████████████████████████████████████████████████████▍ | 27/41 [00:00<00:00, 28.61it/s] INFO - 2025-08-10 07:27:35,198 - Refining Model: 14 60%|██████████████████████████████████████████████████████████████████████████████████████████████▏ | 21/35 [00:00<00:00, 37.88it/s]Early stopping at epoch: 24 66%|███████████████████████████████████████████████████████████████████████████████████████████████████████▏ | 23/35 [00:00<00:00, 30.65it/s] INFO - 2025-08-10 07:27:36,237 - Refining Model: 15 56%|████████████████████████████████████████████████████████████████████████████████████████▎ | 27/48 [00:00<00:00, 45.71it/s]Early stopping at epoch: 29 58%|███████████████████████████████████████████████████████████████████████████████████████████▌ | 28/48 [00:00<00:00, 32.05it/s] INFO - 2025-08-10 07:27:37,375 - Refining Model: 16 82%|████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████▍ | 27/33 [00:00<00:00, 43.76it/s]Early stopping at epoch: 30 88%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████▉ | 29/33 [00:00<00:00, 31.14it/s] INFO - 2025-08-10 07:27:38,570 - Refining Model: 17 78%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████▋ | 31/40 [00:00<00:00, 48.20it/s]Early stopping at epoch: 34 82%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████▌ | 33/40 [00:00<00:00, 35.20it/s] INFO - 2025-08-10 07:27:39,767 - Refining Model: 18 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 36/36 [00:01<00:00, 33.82it/s] INFO - 2025-08-10 07:27:41,093 - Refining Model: 19 65%|█████████████████████████████████████████████████████████████████████████████████████████████████████▌ | 22/34 [00:00<00:00, 31.60it/s]Early stopping at epoch: 30 85%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████▉ | 29/34 [00:00<00:00, 32.17it/s] INFO - 2025-08-10 07:27:42,242 - Refining Model: 20 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 32/32 [00:00<00:00, 32.98it/s] INFO - 2025-08-10 07:27:43,457 - Refining Model: 21 37%|██████████████████████████████████████████████████████████▎ | 13/35 [00:00<00:00, 25.98it/s]Early stopping at epoch: 22 60%|██████████████████████████████████████████████████████████████████████████████████████████████▏ | 21/35 [00:00<00:00, 31.65it/s] INFO - 2025-08-10 07:27:44,368 - Refining Model: 22 62%|██████████████████████████████████████████████████████████████████████████████████████████████████▏ | 25/40 [00:00<00:00, 46.78it/s]Early stopping at epoch: 28 68%|█████████████████████████████████████████████████████████████████████████████████████████████████████████▉ | 27/40 [00:00<00:00, 35.76it/s] INFO - 2025-08-10 07:27:45,363 - Refining Model: 23 70%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████▌ | 31/44 [00:00<00:00, 49.81it/s]Early stopping at epoch: 34 75%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████▊ | 33/44 [00:00<00:00, 36.71it/s] INFO - 2025-08-10 07:27:46,519 - Refining Model: 24 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 30/30 [00:01<00:00, 29.74it/s] INFO - 2025-08-10 07:27:47,785 - Refining Model: 25 64%|███████████████████████████████████████████████████████████████████████████████████████████████████▉ | 21/33 [00:00<00:00, 33.83it/s]Early stopping at epoch: 29 85%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████▏ | 28/33 [00:00<00:00, 33.51it/s] INFO - 2025-08-10 07:27:48,887 - Running feature selection... 100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 9/9 [01:18<00:00, 8.77s/it] INFO - 2025-08-10 07:29:14,545 - Completed successfully!
Note
By default, Hydra uses an ensemble size = 25. If you wish to modify the number of models, please use the argument num_models while running the tool.
Understanding feature selection results
The feature selection process outputs a set of cell type-specific features along with their corresponding importance scores derived from the reference dataset.
This will be stored in the Feature_Selection sub-directory located within the Results directory.
Results/
└── Feature_Selection
└── Hydra-25
├── fs.CD4-positive, alpha-beta T cell_Hydra.csv
├── fs.dendritic cell_Hydra.csv
├── fs.endothelial cell of lymphatic vessel_Hydra.csv
├── fs.lung multiciliated epithelial cell_Hydra.csv
├── fs.mast cell_Hydra.csv
├── fs.natural killer cell_Hydra.csv
├── fs.plasmacytoid dendritic cell_Hydra.csv
├── fs.regulatory T cell_Hydra.csv
└── fs.T cell_Hydra.csv

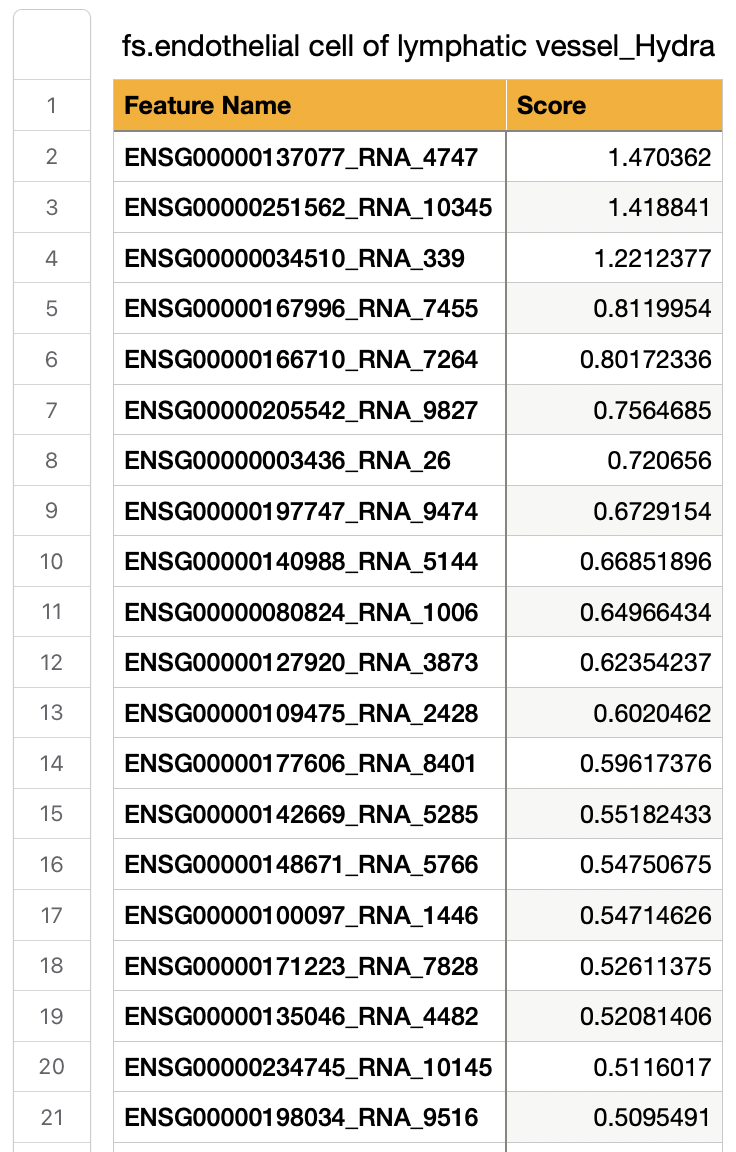

Below is an example of feature selection results for the cell type - endothelial cell of lymphatic vessel:
- By default,
Hydraoutputs the importance scores for all genes for each cell type. The genes are ranked based on their scores, with higher scores indicating better ranks. - Each row corresponds to a gene, its associated modality and index number in the dataset (Gene_Modality_Index), and its corresponding importance score.
Visualizing marker gene expression
Hydra allows users to visualize the expression of marker genes directly within a dataset. Hydra utilizes Seurat, ggplot2 and ggridges to generate these plots.

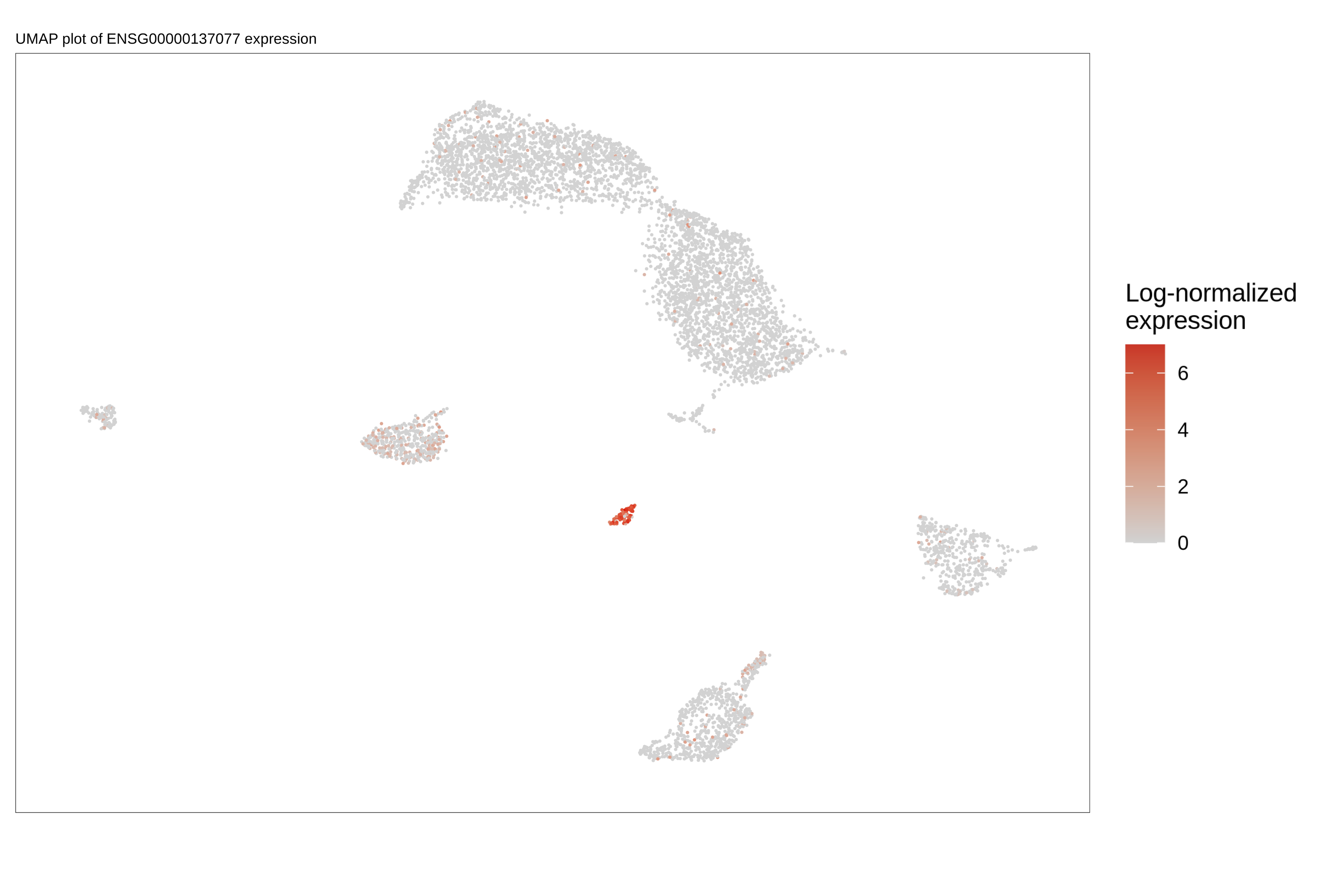

Here, we will visualize the expression of the top gene ENSG00000137077.
hydra --setting plot --modality rna --train scRNA/Lung_Madissoon.h5ad --gene "ENSG00000137077" --ctofinterest "endothelial cell of lymphatic vessel" --celltypecol cell_type
Note
If you want to visualize the marker gene expression in the annotated query dataset, you need to map the cell type labels predicted by Hydra and specify the celltypecol
Thank you for using Hydra 😄, an interpretable deep generative tool for single-cell omics. Please refer to the full documentation available at https://sydneybiox.github.io/Hydra/ for detailed usage instructions. If you encounter any issues running the tool - Please open an issue on Github, and we will get back to you as soon as possible!!
===============================
Device to be used: CUDA
===============================
INFO - 2025-08-10 19:31:02,010 - Starting to run
INFO - 2025-08-10 19:31:02,010 - Generating plot...
Warning: Data is of class matrix. Coercing to dgCMatrix.
Normalizing layer: counts
Performing log-normalization
0% 10 20 30 40 50 60 70 80 90 100%
[----|----|----|----|----|----|----|----|----|----|
**************************************************|
Finding variable features for layer counts
Calculating gene variances
0% 10 20 30 40 50 60 70 80 90 100%
[----|----|----|----|----|----|----|----|----|----|
**************************************************|
Calculating feature variances of standardized and clipped values
0% 10 20 30 40 50 60 70 80 90 100%
[----|----|----|----|----|----|----|----|----|----|
**************************************************|
Centering and scaling data matrix
|======================================================================| 100%
PC_ 1
Positive: ENSG00000075624, ENSG00000275302, ENSG00000115523, ENSG00000158050, ENSG00000100906, ENSG00000090104, ENSG00000034510, ENSG00000111537, ENSG00000158869, ENSG00000116741
ENSG00000227507, ENSG00000143185, ENSG00000277632, ENSG00000132965, ENSG00000011600, ENSG00000143184, ENSG00000023445, ENSG00000276070, ENSG00000147872, ENSG00000109861
ENSG00000134333, ENSG00000136732, ENSG00000188404, ENSG00000186891, ENSG00000170345, ENSG00000100097, ENSG00000111640, ENSG00000109321, ENSG00000026025, ENSG00000134545
Negative: ENSG00000124237, ENSG00000117472, ENSG00000179902, ENSG00000186973, ENSG00000164972, ENSG00000160188, ENSG00000267795, ENSG00000173947, ENSG00000159713, ENSG00000160345
ENSG00000188817, ENSG00000215217, ENSG00000183644, ENSG00000185681, ENSG00000133640, ENSG00000168589, ENSG00000105519, ENSG00000152611, ENSG00000173467, ENSG00000153789
ENSG00000166959, ENSG00000188010, ENSG00000174844, ENSG00000160401, ENSG00000154099, ENSG00000136918, ENSG00000089356, ENSG00000162004, ENSG00000004838, ENSG00000188931
PC_ 2
Positive: ENSG00000101439, ENSG00000127920, ENSG00000137077, ENSG00000110841, ENSG00000196735, ENSG00000198502, ENSG00000030582, ENSG00000138722, ENSG00000003436, ENSG00000260314
ENSG00000223865, ENSG00000162493, ENSG00000110077, ENSG00000132514, ENSG00000249751, ENSG00000147113, ENSG00000173267, ENSG00000204287, ENSG00000148671, ENSG00000179344
ENSG00000143226, ENSG00000178726, ENSG00000140749, ENSG00000277443, ENSG00000117707, ENSG00000231389, ENSG00000204472, ENSG00000204257, ENSG00000196126, ENSG00000066336
Negative: ENSG00000115523, ENSG00000124237, ENSG00000186973, ENSG00000179902, ENSG00000164972, ENSG00000215217, ENSG00000185681, ENSG00000160188, ENSG00000173947, ENSG00000111537
ENSG00000188817, ENSG00000267795, ENSG00000105519, ENSG00000160345, ENSG00000183644, ENSG00000231621, ENSG00000152611, ENSG00000168589, ENSG00000143185, ENSG00000136918
ENSG00000117472, ENSG00000174844, ENSG00000188931, ENSG00000153789, ENSG00000160401, ENSG00000172426, ENSG00000004838, ENSG00000133640, ENSG00000162004, ENSG00000173467
PC_ 3
Positive: ENSG00000196735, ENSG00000110077, ENSG00000132514, ENSG00000179344, ENSG00000204287, ENSG00000140749, ENSG00000198502, ENSG00000204472, ENSG00000231389, ENSG00000204257
ENSG00000223865, ENSG00000072694, ENSG00000196126, ENSG00000242574, ENSG00000158481, ENSG00000066336, ENSG00000114013, ENSG00000163563, ENSG00000204482, ENSG00000143226
ENSG00000169429, ENSG00000019582, ENSG00000166920, ENSG00000090382, ENSG00000106066, ENSG00000135549, ENSG00000125538, ENSG00000112799, ENSG00000172243, ENSG00000159189
Negative: ENSG00000138722, ENSG00000137077, ENSG00000127920, ENSG00000173267, ENSG00000249751, ENSG00000162493, ENSG00000003436, ENSG00000160180, ENSG00000147113, ENSG00000110841
ENSG00000267107, ENSG00000117707, ENSG00000148671, ENSG00000122786, ENSG00000169908, ENSG00000184113, ENSG00000131477, ENSG00000188643, ENSG00000068001, ENSG00000137962
ENSG00000137726, ENSG00000037280, ENSG00000185551, ENSG00000170365, ENSG00000105974, ENSG00000075213, ENSG00000163762, ENSG00000024422, ENSG00000172889, ENSG00000267583
PC_ 4
Positive: ENSG00000115523, ENSG00000075624, ENSG00000275302, ENSG00000277632, ENSG00000034510, ENSG00000143185, ENSG00000158050, ENSG00000111537, ENSG00000109861, ENSG00000019582
ENSG00000160932, ENSG00000136732, ENSG00000140968, ENSG00000143184, ENSG00000227507, ENSG00000276085, ENSG00000134333, ENSG00000276070, ENSG00000182718, ENSG00000197747
ENSG00000166794, ENSG00000221869, ENSG00000150687, ENSG00000188404, ENSG00000143870, ENSG00000134545, ENSG00000084207, ENSG00000163453, ENSG00000231389, ENSG00000180817
Negative: ENSG00000172236, ENSG00000197253, ENSG00000163751, ENSG00000163106, ENSG00000179348, ENSG00000149534, ENSG00000164120, ENSG00000263961, ENSG00000157404, ENSG00000110002
ENSG00000127074, ENSG00000140287, ENSG00000106565, ENSG00000233968, ENSG00000135678, ENSG00000160789, ENSG00000120885, ENSG00000042493, ENSG00000267453, ENSG00000073756
ENSG00000010278, ENSG00000073737, ENSG00000068697, ENSG00000128342, ENSG00000167996, ENSG00000116741, ENSG00000135404, ENSG00000179639, ENSG00000168952, ENSG00000002933
PC_ 5
Positive: ENSG00000138722, ENSG00000160180, ENSG00000147113, ENSG00000249751, ENSG00000117707, ENSG00000163762, ENSG00000267107, ENSG00000137077, ENSG00000110841, ENSG00000137962
ENSG00000170323, ENSG00000173267, ENSG00000267583, ENSG00000168497, ENSG00000170365, ENSG00000037280, ENSG00000118257, ENSG00000277443, ENSG00000154133, ENSG00000179776
ENSG00000185551, ENSG00000178726, ENSG00000075213, ENSG00000184113, ENSG00000169908, ENSG00000184058, ENSG00000154330, ENSG00000172889, ENSG00000127920, ENSG00000164849
Negative: ENSG00000108821, ENSG00000118849, ENSG00000011465, ENSG00000077942, ENSG00000164647, ENSG00000164692, ENSG00000168542, ENSG00000109846, ENSG00000116132, ENSG00000124212
ENSG00000142156, ENSG00000139329, ENSG00000188257, ENSG00000205362, ENSG00000167779, ENSG00000129009, ENSG00000111341, ENSG00000134853, ENSG00000197766, ENSG00000113140
ENSG00000004776, ENSG00000162576, ENSG00000106333, ENSG00000091986, ENSG00000109610, ENSG00000157613, ENSG00000112936, ENSG00000140285, ENSG00000163520, ENSG00000174807
Warning: The default method for RunUMAP has changed from calling Python UMAP via reticulate to the R-native UWOT using the cosine metric
To use Python UMAP via reticulate, set umap.method to 'umap-learn' and metric to 'correlation'
This message will be shown once per session
19:31:17 UMAP embedding parameters a = 0.9922 b = 1.112
19:31:17 Read 5950 rows and found 10 numeric columns
19:31:17 Using Annoy for neighbor search, n_neighbors = 30
19:31:17 Building Annoy index with metric = cosine, n_trees = 50
0% 10 20 30 40 50 60 70 80 90 100%
[----|----|----|----|----|----|----|----|----|----|
**************************************************|
19:31:17 Writing NN index file to temp file /tmp/RtmpSm0msP/file3e8b8a7a56378a
19:31:17 Searching Annoy index using 1 thread, search_k = 3000
19:31:19 Annoy recall = 100%
19:31:19 Commencing smooth kNN distance calibration using 1 thread with target n_neighbors = 30
19:31:19 Initializing from normalized Laplacian + noise (using RSpectra)
19:31:20 Commencing optimization for 500 epochs, with 249888 positive edges
19:31:20 Using rng type: pcg
Using method 'umap'
0% 10 20 30 40 50 60 70 80 90 100%
[----|----|----|----|----|----|----|----|----|----|
**************************************************|
19:31:25 Optimization finished
Scale for colour is already present.
Adding another scale for colour, which will replace the existing scale.
Picking joint bandwidth of 0.196
INFO - 2025-08-10 19:31:27,272 - Completed successfully!

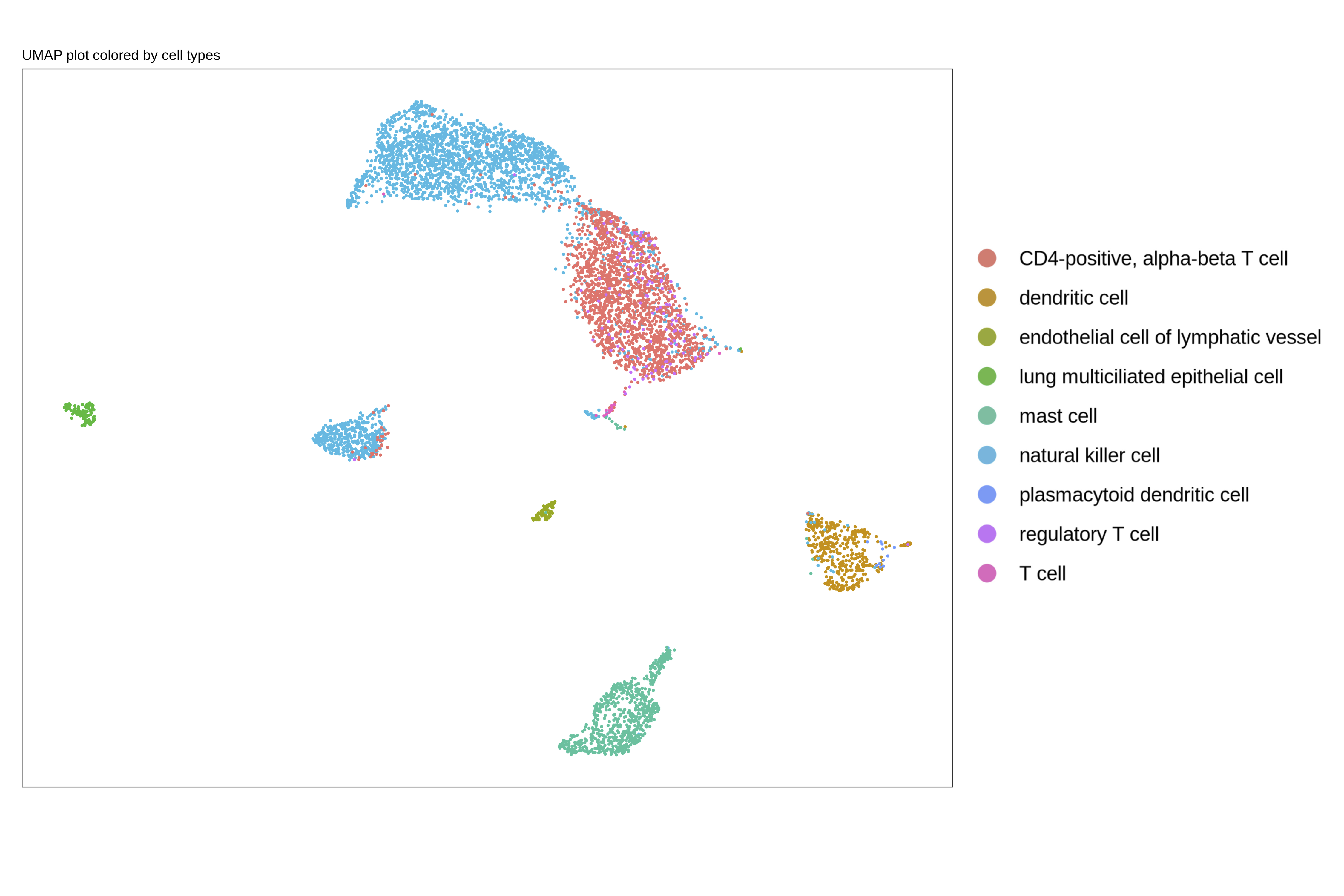

The gene and ctofinterest arguments are optional. If you run Hydra without these arguments, only a UMAP plot of the dataset will be generated.
The gene argument highlights the expression of a specified gene across all cell types on the UMAP plot.

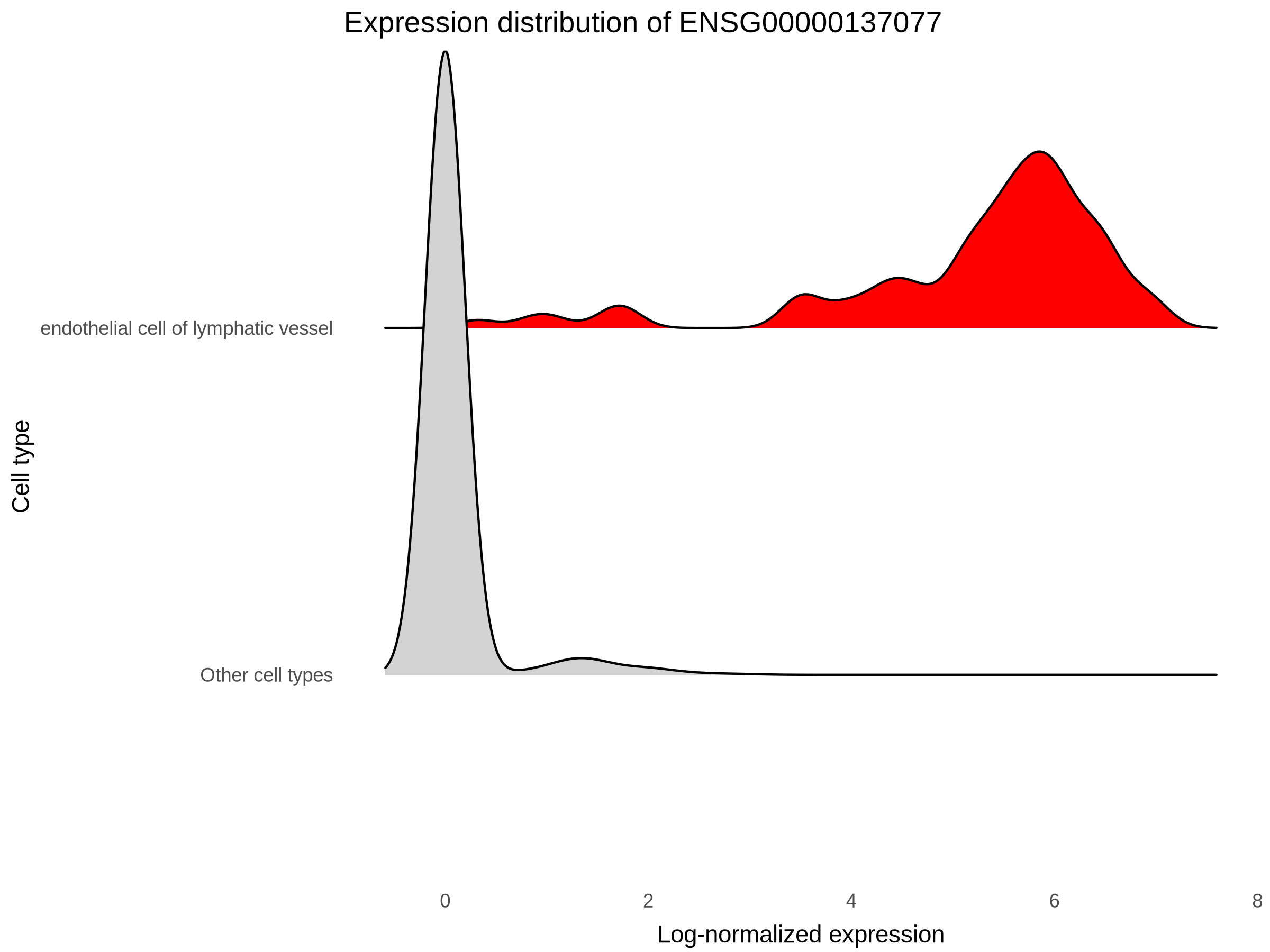

The ctofinterest argument generates a ridgeline plot showing the expression of the specified gene in the cell type of interest versus all other cell types.
The plots generated will be stored in the directory Results/Plots.
Automated cell type annotation
Another key component of Hydra is an automated cell type annotation module. We will use the setting annotation to annotate the query dataset.
Note
You need to run feature selection (fs) on the reference datatset before annotating the query. If you have already run feature selection on the reference & want to annotate (annotation) a different related query dataset, please process the data (processdata) first and then provide the path to the directory containing this processed data.
In this example, we will annotate the Lung dataset (He et al) introduced earlier. Since we are running fs from the same directory containing the Input_Processed directory, we can skip the base_dir argument.
hydra --setting annotation
Thank you for using Hydra 😄, an interpretable deep generative tool for single-cell omics. Please refer to the full documentation available at https://sydneybiox.github.io/Hydra/ for detailed usage instructions. If you encounter any issues running the tool - Please open an issue on Github, and we will get back to you as soon as possible!! =============================== Device to be used: CUDA =============================== INFO - 2025-08-10 19:52:13,972 - Starting to run Device to be used: cuda INFO - 2025-08-10 19:52:16,352 - Training classifier: 1 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:09<00:00, 1.87s/it] INFO - 2025-08-10 19:53:08,709 - Training classifier: 2 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 70.58it/s] INFO - 2025-08-10 19:53:11,426 - Training classifier: 3 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 71.25it/s] INFO - 2025-08-10 19:53:13,269 - Training classifier: 4 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 69.50it/s] INFO - 2025-08-10 19:53:15,711 - Training classifier: 5 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 61.14it/s] INFO - 2025-08-10 19:53:17,226 - Training classifier: 6 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 61.22it/s] INFO - 2025-08-10 19:53:19,323 - Training classifier: 7 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 66.35it/s] INFO - 2025-08-10 19:53:21,421 - Training classifier: 8 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 60.45it/s] INFO - 2025-08-10 19:53:23,181 - Training classifier: 9 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 60.71it/s] INFO - 2025-08-10 19:53:25,759 - Training classifier: 10 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 70.00it/s] INFO - 2025-08-10 19:53:28,174 - Training classifier: 11 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 69.72it/s] INFO - 2025-08-10 19:53:30,902 - Training classifier: 12 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 69.22it/s] INFO - 2025-08-10 19:53:33,107 - Training classifier: 13 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 69.46it/s] INFO - 2025-08-10 19:53:35,200 - Training classifier: 14 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 68.02it/s] INFO - 2025-08-10 19:53:37,760 - Training classifier: 15 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 70.47it/s] INFO - 2025-08-10 19:53:40,618 - Training classifier: 16 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 68.59it/s] INFO - 2025-08-10 19:53:42,993 - Training classifier: 17 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 69.41it/s] INFO - 2025-08-10 19:53:45,198 - Training classifier: 18 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 69.64it/s] INFO - 2025-08-10 19:53:46,947 - Training classifier: 19 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 70.02it/s] INFO - 2025-08-10 19:53:48,458 - Training classifier: 20 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 69.59it/s] INFO - 2025-08-10 19:53:49,924 - Training classifier: 21 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 69.37it/s] INFO - 2025-08-10 19:53:52,444 - Training classifier: 22 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 71.17it/s] INFO - 2025-08-10 19:53:54,682 - Training classifier: 23 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 69.72it/s] INFO - 2025-08-10 19:53:57,157 - Training classifier: 24 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 70.59it/s] INFO - 2025-08-10 19:53:59,812 - Training classifier: 25 100%|█████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 71.28it/s] INFO - 2025-08-10 19:54:02,705 - Annotating the query dataset... INFO - 2025-08-10 19:54:22,460 - Completed successfully!
Note
The number of classifiers should be equal to the number of models (Ensemble size) used in the feature selection step. If you have changed the ensemble size, then you need to provide an additional argument num_classifiers when calling the annotation setting.
The annotation results generated will be stored in the directory Results/Annotation.
Plotting cell type predictions
Hydra also allows users to visualize the predicted labels on the UMAP plot. We will use the Hydra predicted labels for the Lung dataset (He et al):
hydra --setting plot --predictions True --test scRNA/Lung_He.h5ad --modality rna --ctpredictions Results/Annotation/Hydra-25/cell_type_predicted_Hydra-25.csv
Thank you for using Hydra 😄, an interpretable deep generative tool for single-cell omics. Please refer to the full documentation available at https://sydneybiox.github.io/Hydra/ for detailed usage instructions. If you encounter any issues running the tool - Please open an issue on Github, and we will get back to you as soon as possible!!
===============================
Device to be used: CUDA
===============================
INFO - 2025-08-10 20:08:55,945 - Starting to run
INFO - 2025-08-10 20:08:55,945 - Generating plot for Hydra predicted cell types...
Warning: Data is of class matrix. Coercing to dgCMatrix.
Normalizing layer: counts
Performing log-normalization
0% 10 20 30 40 50 60 70 80 90 100%
[----|----|----|----|----|----|----|----|----|----|
**************************************************|
Finding variable features for layer counts
Calculating gene variances
0% 10 20 30 40 50 60 70 80 90 100%
[----|----|----|----|----|----|----|----|----|----|
**************************************************|
Calculating feature variances of standardized and clipped values
0% 10 20 30 40 50 60 70 80 90 100%
[----|----|----|----|----|----|----|----|----|----|
**************************************************|
Centering and scaling data matrix
|======================================================================| 100%
PC_ 1
Positive: ENSG00000124237, ENSG00000186973, ENSG00000160188, ENSG00000105519, ENSG00000164972, ENSG00000173947, ENSG00000159713, ENSG00000173467, ENSG00000160345, ENSG00000215217
ENSG00000004838, ENSG00000179902, ENSG00000188817, ENSG00000160401, ENSG00000162004, ENSG00000153789, ENSG00000168589, ENSG00000183644, ENSG00000152611, ENSG00000117472
ENSG00000174844, ENSG00000172361, ENSG00000188010, ENSG00000188931, ENSG00000034239, ENSG00000167858, ENSG00000133640, ENSG00000166165, ENSG00000257057, ENSG00000166959
Negative: ENSG00000034510, ENSG00000075624, ENSG00000111640, ENSG00000026025, ENSG00000122862, ENSG00000103187, ENSG00000196230, ENSG00000136732, ENSG00000087086, ENSG00000100097
ENSG00000127528, ENSG00000167460, ENSG00000011600, ENSG00000204472, ENSG00000158050, ENSG00000100906, ENSG00000175130, ENSG00000019582, ENSG00000102265, ENSG00000169442
ENSG00000115956, ENSG00000132965, ENSG00000090104, ENSG00000110848, ENSG00000168209, ENSG00000137509, ENSG00000164687, ENSG00000231389, ENSG00000223865, ENSG00000112149
PC_ 2
Positive: ENSG00000003436, ENSG00000137077, ENSG00000188643, ENSG00000131477, ENSG00000172889, ENSG00000114115, ENSG00000127920, ENSG00000184113, ENSG00000110841, ENSG00000168497
ENSG00000112769, ENSG00000117707, ENSG00000122786, ENSG00000100234, ENSG00000141753, ENSG00000177469, ENSG00000160180, ENSG00000117519, ENSG00000118257, ENSG00000037280
ENSG00000138722, ENSG00000066056, ENSG00000117122, ENSG00000163453, ENSG00000128052, ENSG00000187498, ENSG00000134871, ENSG00000152661, ENSG00000179776, ENSG00000137726
Negative: ENSG00000122862, ENSG00000011600, ENSG00000158050, ENSG00000204472, ENSG00000115956, ENSG00000090104, ENSG00000196154, ENSG00000110848, ENSG00000169442, ENSG00000153234
ENSG00000019582, ENSG00000137309, ENSG00000185885, ENSG00000265206, ENSG00000204287, ENSG00000143110, ENSG00000141682, ENSG00000196126, ENSG00000179344, ENSG00000204482
ENSG00000132965, ENSG00000196735, ENSG00000112149, ENSG00000198502, ENSG00000160593, ENSG00000066336, ENSG00000123358, ENSG00000204257, ENSG00000231389, ENSG00000121966
PC_ 3
Positive: ENSG00000101439, ENSG00000223865, ENSG00000231389, ENSG00000196126, ENSG00000204287, ENSG00000198502, ENSG00000196735, ENSG00000179344, ENSG00000204257, ENSG00000066336
ENSG00000242574, ENSG00000127951, ENSG00000172243, ENSG00000101336, ENSG00000132514, ENSG00000129226, ENSG00000106066, ENSG00000163563, ENSG00000204482, ENSG00000019582
ENSG00000182578, ENSG00000166428, ENSG00000112799, ENSG00000140749, ENSG00000120708, ENSG00000197629, ENSG00000169413, ENSG00000160593, ENSG00000100079, ENSG00000161921
Negative: ENSG00000185885, ENSG00000197540, ENSG00000145649, ENSG00000211772, ENSG00000211751, ENSG00000167286, ENSG00000198851, ENSG00000105374, ENSG00000111796, ENSG00000172543
ENSG00000110848, ENSG00000180644, ENSG00000007264, ENSG00000077984, ENSG00000134539, ENSG00000100385, ENSG00000171476, ENSG00000183918, ENSG00000008517, ENSG00000213658
ENSG00000160654, ENSG00000271503, ENSG00000134545, ENSG00000027869, ENSG00000143185, ENSG00000143184, ENSG00000073861, ENSG00000115523, ENSG00000169583, ENSG00000198574
PC_ 4
Positive: ENSG00000175063, ENSG00000131747, ENSG00000148773, ENSG00000170312, ENSG00000137804, ENSG00000089685, ENSG00000088325, ENSG00000178999, ENSG00000237649, ENSG00000145386
ENSG00000075218, ENSG00000134690, ENSG00000066279, ENSG00000117724, ENSG00000157456, ENSG00000100526, ENSG00000126787, ENSG00000111665, ENSG00000166851, ENSG00000109805
ENSG00000176890, ENSG00000169607, ENSG00000121152, ENSG00000072571, ENSG00000123485, ENSG00000115163, ENSG00000117399, ENSG00000122952, ENSG00000143228, ENSG00000142945
Negative: ENSG00000169583, ENSG00000111796, ENSG00000197540, ENSG00000115523, ENSG00000077984, ENSG00000100385, ENSG00000180644, ENSG00000134539, ENSG00000145649, ENSG00000171476
ENSG00000271503, ENSG00000185885, ENSG00000275302, ENSG00000203747, ENSG00000117281, ENSG00000110848, ENSG00000105374, ENSG00000134545, ENSG00000198574, ENSG00000150045
ENSG00000159674, ENSG00000172543, ENSG00000211751, ENSG00000111537, ENSG00000073861, ENSG00000007264, ENSG00000180739, ENSG00000132002, ENSG00000158050, ENSG00000143185
PC_ 5
Positive: ENSG00000227507, ENSG00000138795, ENSG00000126353, ENSG00000139193, ENSG00000152495, ENSG00000168685, ENSG00000110448, ENSG00000173114, ENSG00000081059, ENSG00000089012
ENSG00000137078, ENSG00000172005, ENSG00000188404, ENSG00000102245, ENSG00000013725, ENSG00000178562, ENSG00000072163, ENSG00000116824, ENSG00000163600, ENSG00000169442
ENSG00000165272, ENSG00000090554, ENSG00000078596, ENSG00000135426, ENSG00000163519, ENSG00000198851, ENSG00000069493, ENSG00000277734, ENSG00000064886, ENSG00000008517
Negative: ENSG00000105374, ENSG00000077984, ENSG00000134539, ENSG00000172543, ENSG00000171476, ENSG00000275302, ENSG00000111796, ENSG00000203747, ENSG00000180644, ENSG00000134545
ENSG00000143185, ENSG00000271503, ENSG00000115523, ENSG00000011600, ENSG00000198574, ENSG00000143184, ENSG00000073861, ENSG00000180739, ENSG00000277632, ENSG00000169583
ENSG00000115956, ENSG00000150045, ENSG00000100450, ENSG00000117281, ENSG00000163508, ENSG00000211829, ENSG00000100453, ENSG00000100385, ENSG00000111537, ENSG00000007264
Warning: The default method for RunUMAP has changed from calling Python UMAP via reticulate to the R-native UWOT using the cosine metric
To use Python UMAP via reticulate, set umap.method to 'umap-learn' and metric to 'correlation'
This message will be shown once per session
20:09:14 UMAP embedding parameters a = 0.9922 b = 1.112
20:09:14 Read 6483 rows and found 10 numeric columns
20:09:14 Using Annoy for neighbor search, n_neighbors = 30
20:09:14 Building Annoy index with metric = cosine, n_trees = 50
0% 10 20 30 40 50 60 70 80 90 100%
[----|----|----|----|----|----|----|----|----|----|
**************************************************|
20:09:14 Writing NN index file to temp file /tmp/RtmpU0dZPV/file3ef8bc449f0c19
20:09:14 Searching Annoy index using 1 thread, search_k = 3000
20:09:16 Annoy recall = 100%
20:09:16 Commencing smooth kNN distance calibration using 1 thread with target n_neighbors = 30
20:09:16 Initializing from normalized Laplacian + noise (using RSpectra)
20:09:18 Commencing optimization for 500 epochs, with 260692 positive edges
20:09:18 Using rng type: pcg
Using method 'umap'
0% 10 20 30 40 50 60 70 80 90 100%
[----|----|----|----|----|----|----|----|----|----|
**************************************************|
20:09:24 Optimization finished
INFO - 2025-08-10 20:09:24,813 - Completed successfully!

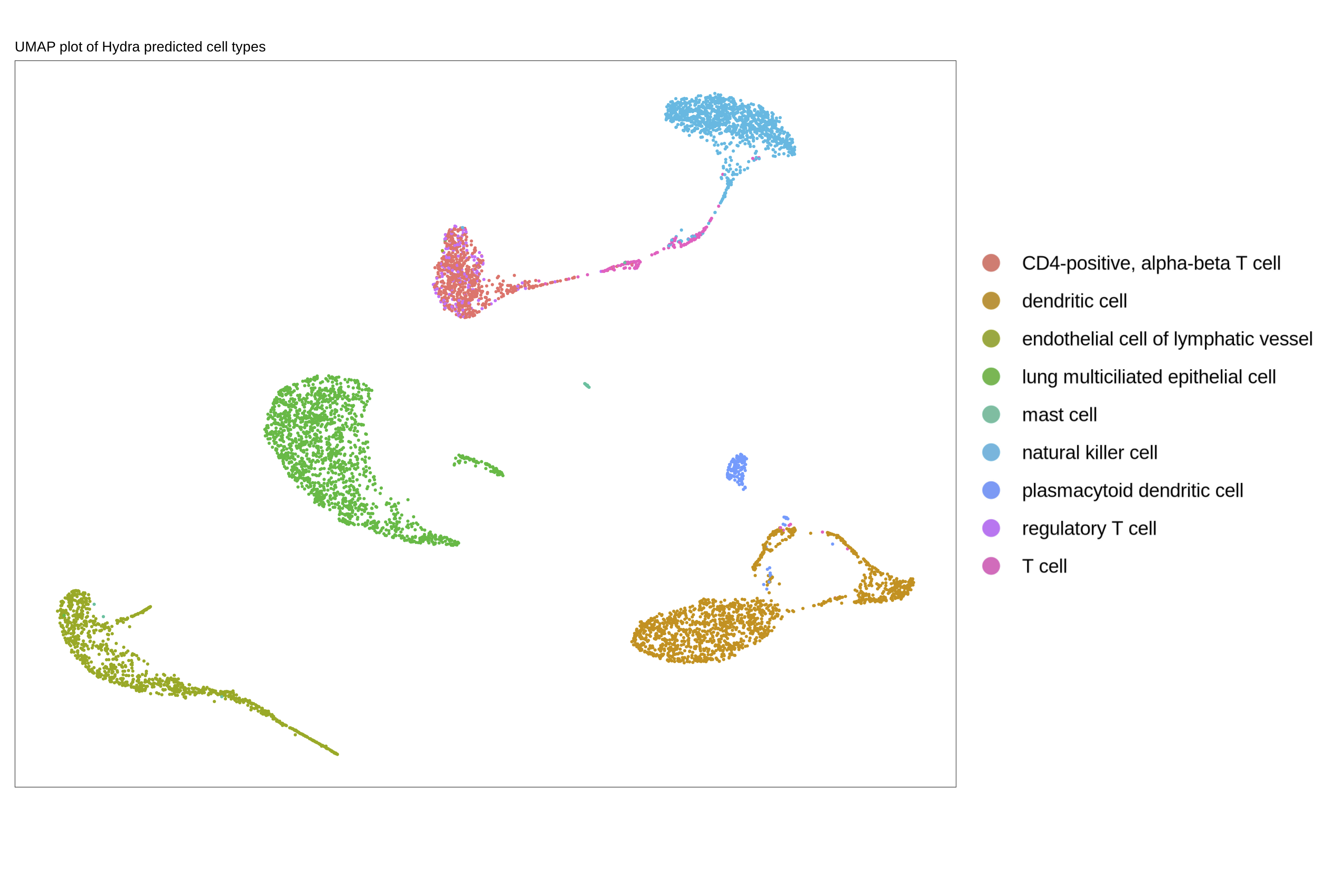

Below is an example of UMAP of Hydra predicted cell types for the Lung dataset (He et al):

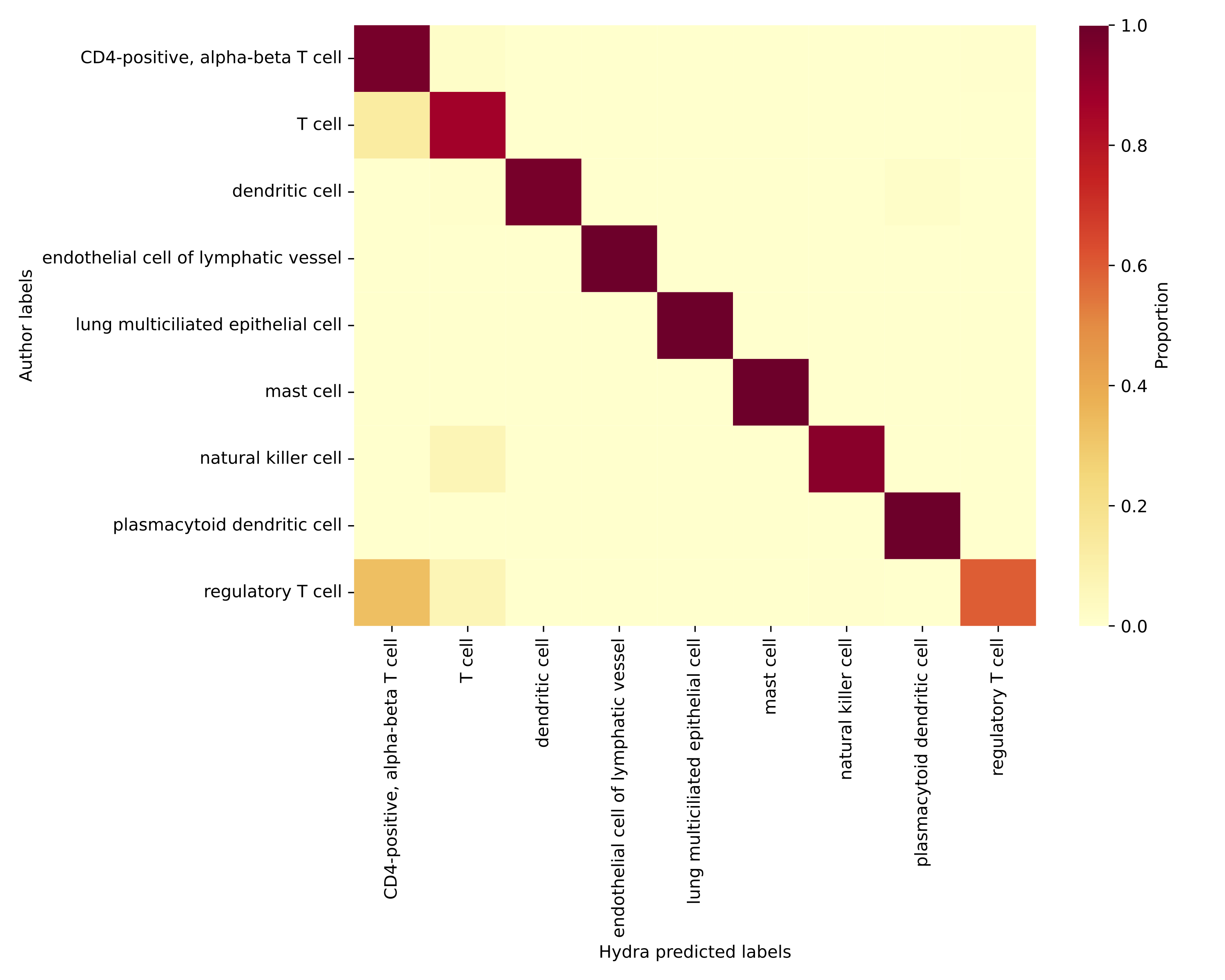

Below, we include an external figure showing the agreement between Hydra predicted cell type labels and the authors’ labels
